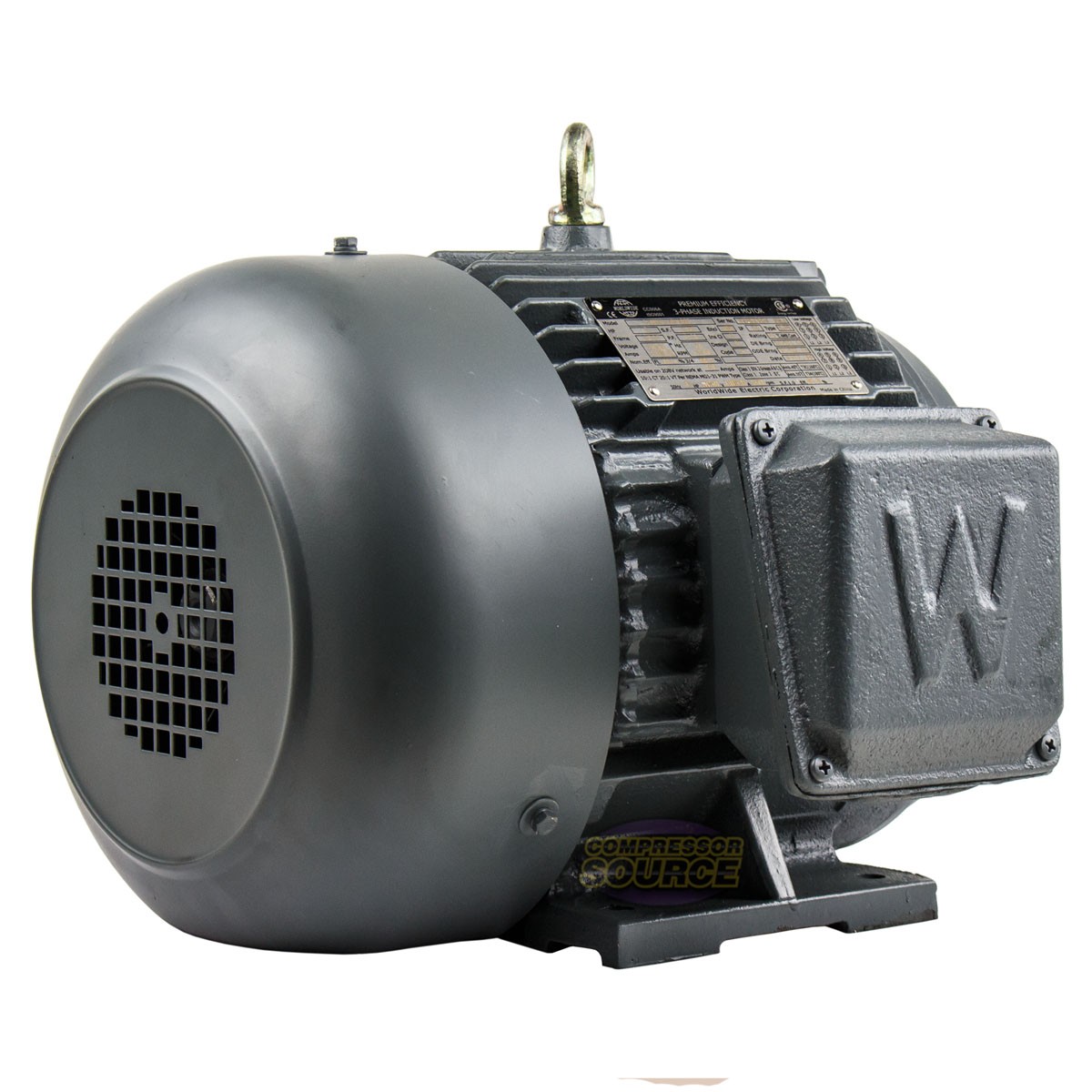

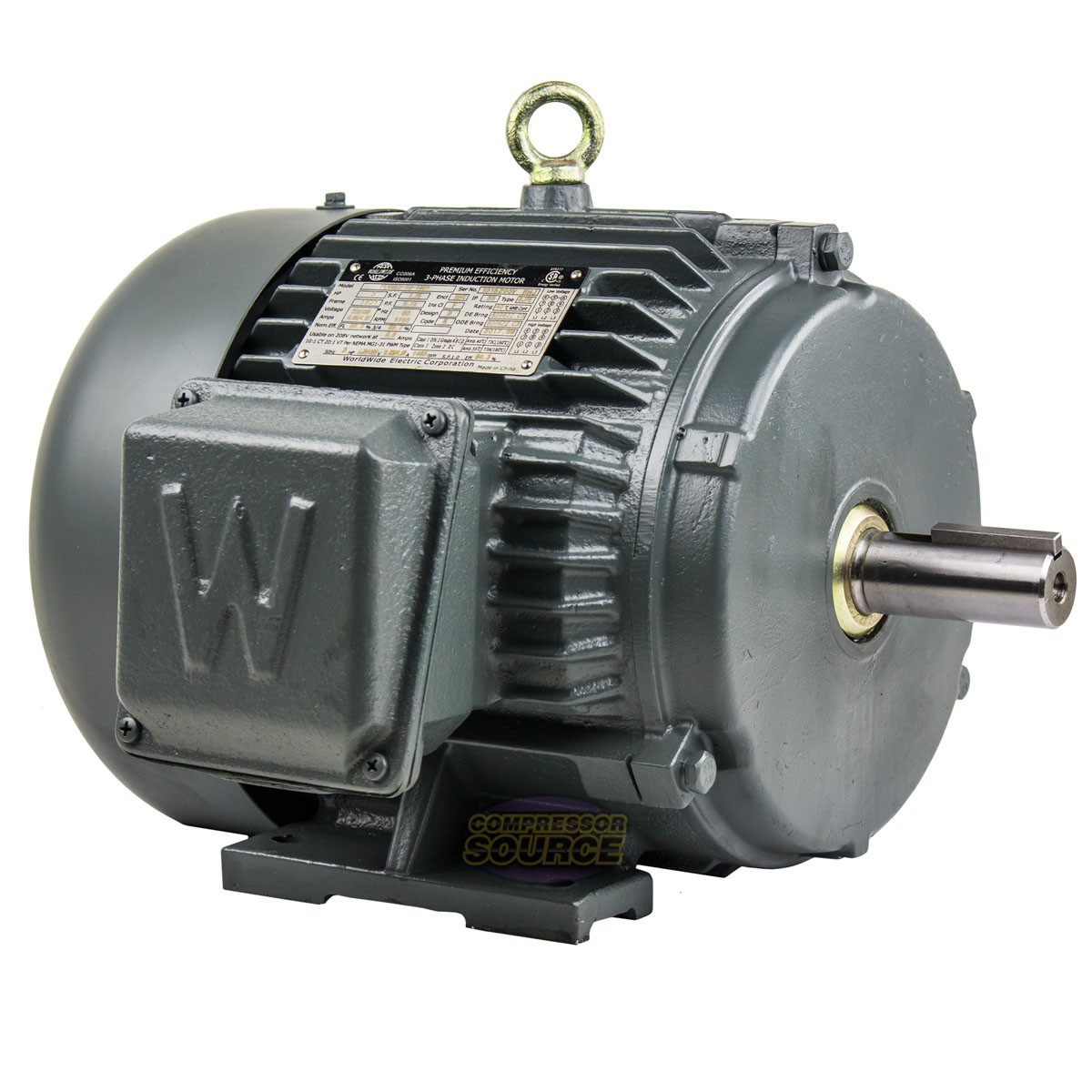

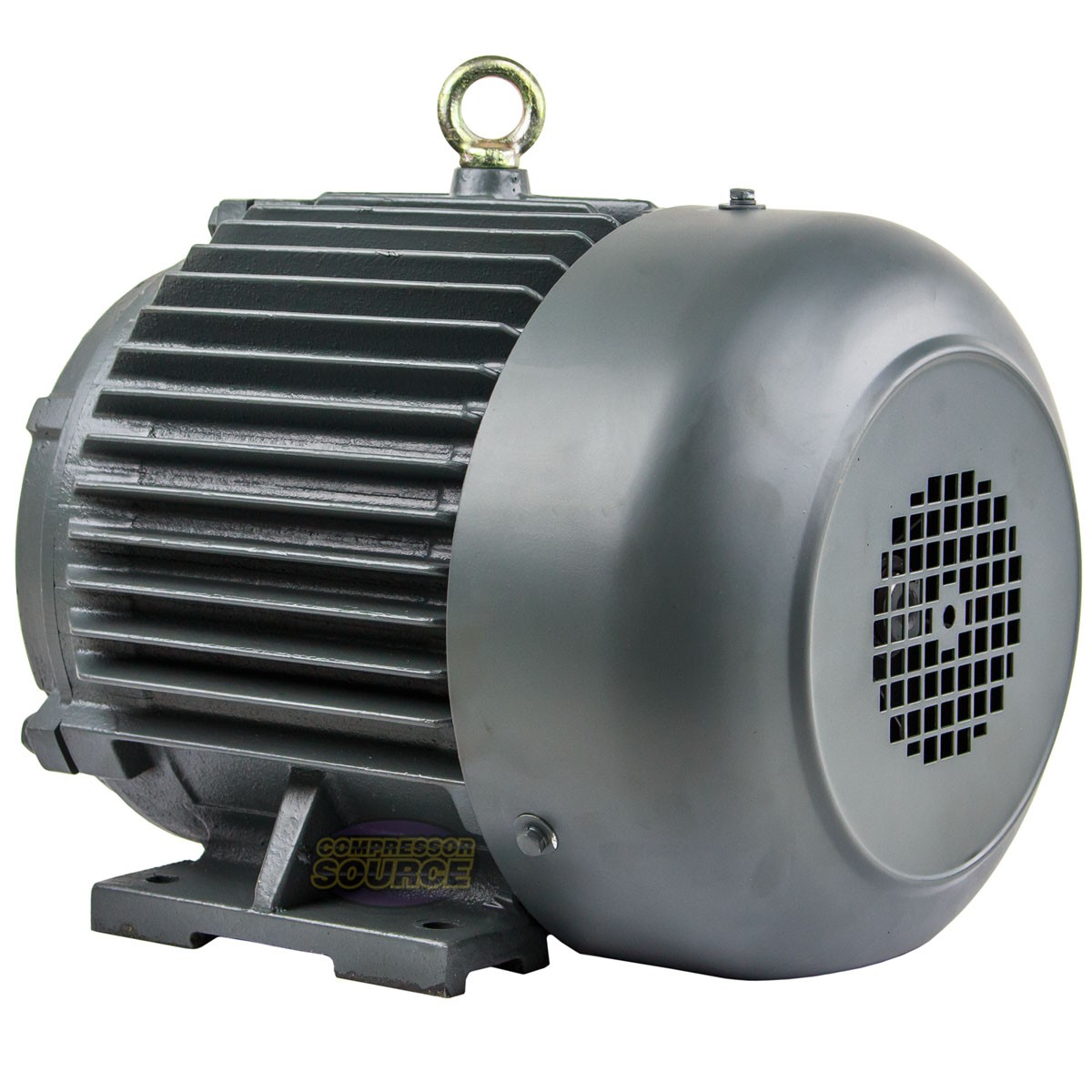

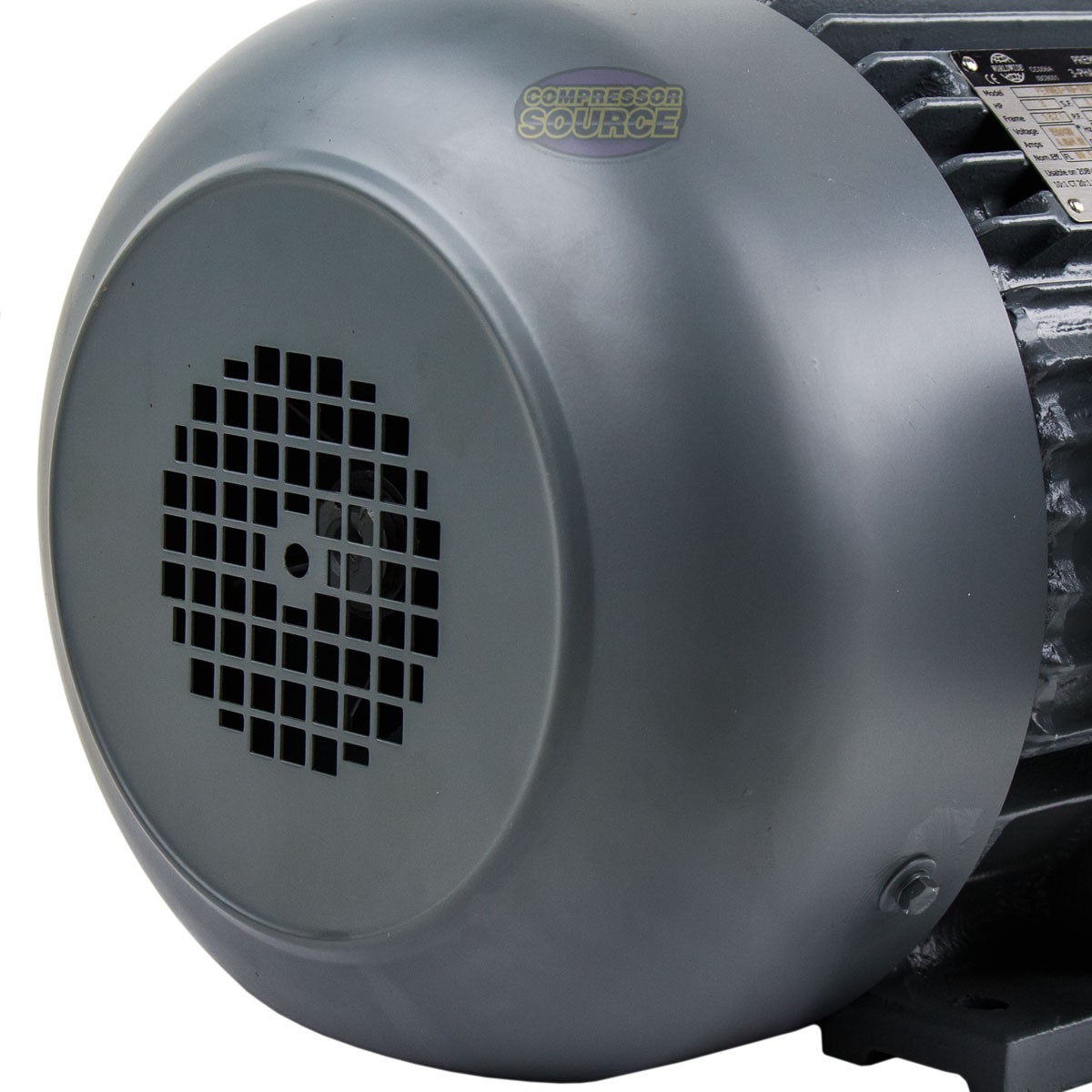

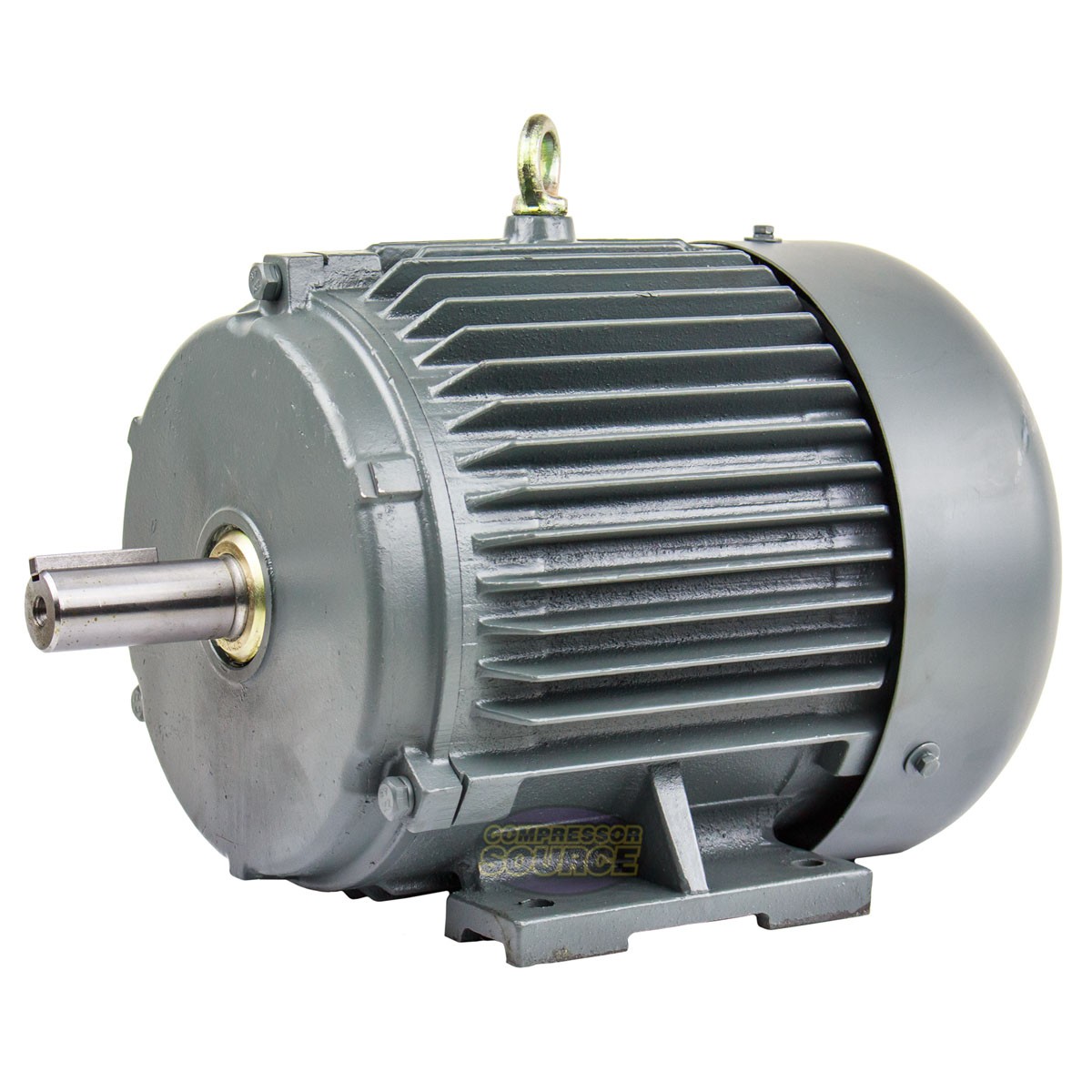

3 HP 3 Phase Electric Motor 1800 RPM 182T Frame TEFC 230/460V Premium Efficiency
USD 519.95 USD
Specifications
| Brand | Worldwide Electric |
| Shaft Diameter | 1 1/8 in |
| MPN | PEWWE3-18-182T |
| Model | PEWWE3-18-182T |
| Country Of Origin | China |
| AC Phase | Three Phase |
| Nominal Rated Input Voltage | 208 V, 230 V, 460 V |
| Service Factor | 1.25 |
| IEC Frame Size | 182T |
| AC Frequency Rating | 60 Hz |
| Mounting Type | Base-Mounted |
| Reversible/Non-Reversible | Non-Reversible |

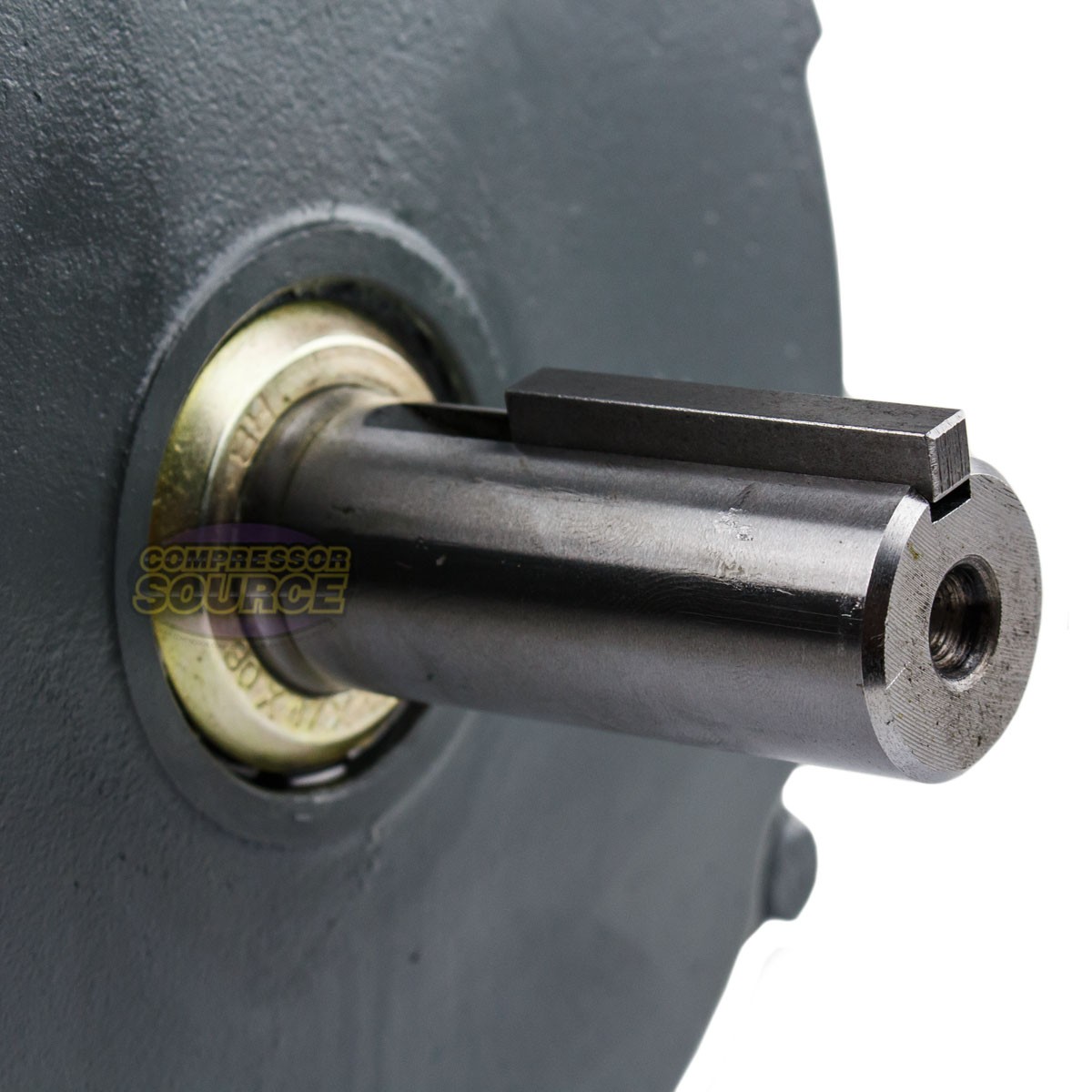

| Shaft Type | Keyed |
| IP Rating | IP55 |
| Insulation Class | F (Max 311°F) |
| Protection Against Liquids | Not Protected |
| Base RPM | 1755 |
| Full Load Amps | 8.05 |
| Color | Gray |
| Features | 3 Horsepower |
| Design | Heavy Duty |
| UPC | 685650078946 |
Brand new 3 horsepower, 3 phase premium efficiency severe duty electric motor with rigid base. Worldwide Electric designs and manufactures motors with quality and reliability in mind. This motor features Class F insulation, fan cooling, a 1.25 service factor (1.00 at 50Hz), is a premium efficiency severe duty motor. Designed for 60Hz, features a TEFC / IP55 enclosure, and is a 182T frame.
