Lot of 4 – TSC Taiwan Semiconductor ARS50D Button Diode Rectifier 200Vrrm 50 Amp
USD 18.98 USD
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Mounting Style | Solder |
| Package/Case | ARS |
| Material | Silicone |
| MPN | ARS50D |
| Peak Reverse Repetitive Voltage | 200 V |
| Peak Surge Current | 600 A |
| Minimum Operating Temperature | -50 C |
| Series | ARS50D |
| Type | Button Diode |
| Diode Configuration | Button Diode |
| Maximum Forward Current | 50 A |
| Item Height | 6.4mm (0.250") |
| Packaging | Bulk |
| Maximum Continuous Current | 50 A |
| Reverse Current | 5 uA |
| Maximum Operating Temperature | 175 °C (347 °F) |
| Item Width | 8.9mm (0.347") |

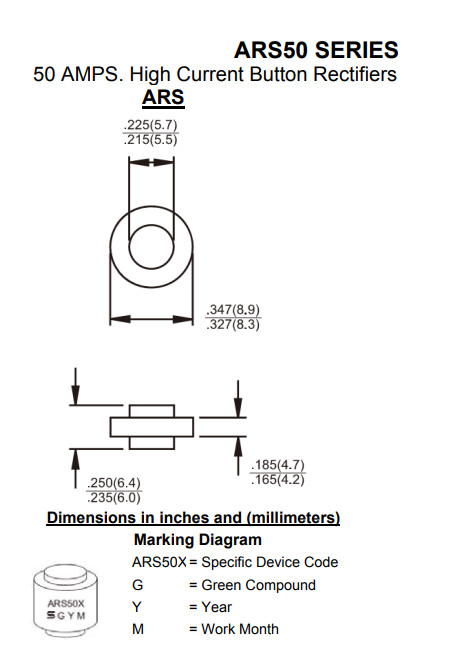

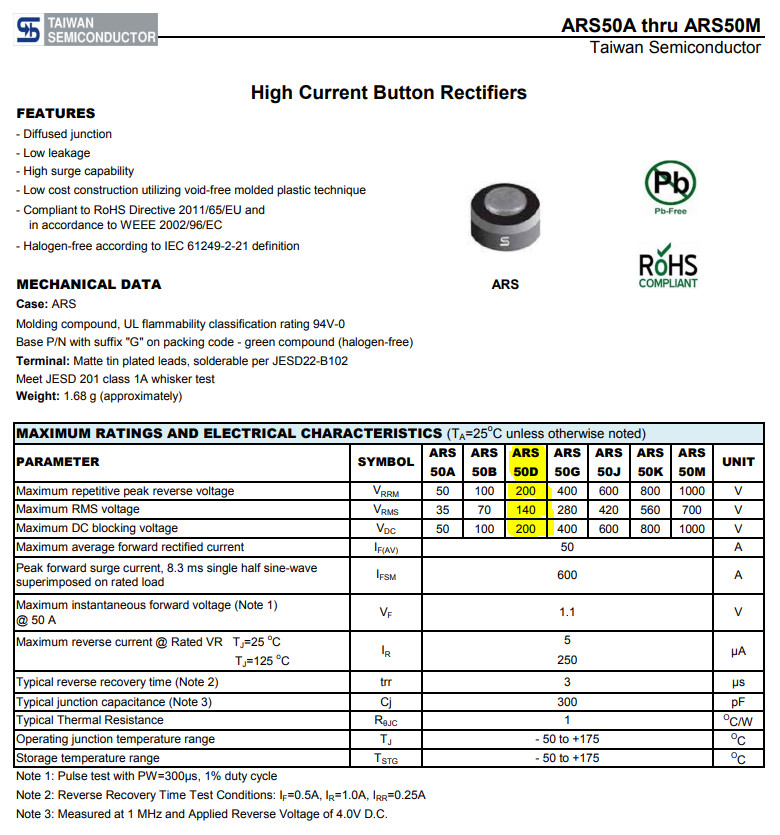

TSC Taiwan Semiconductor - ARS50D Diode. Status: Discontinued 200Vrrm 50Amp. Size: 0.347" [8.9] D, 0.225" [5.6] D, plated terminals, solderable per MIL-STD-202 Method 208, only 0.25" thick. Color Ring denotes cathode. UL-94V-O. Diffused Junction, High Current Plastic Silicon Rectifiers. Forward Current: 50 A Operating Temperature: -50 °C to 175 °C Max Repetitive Reverse Voltage (Vrrm): 200 V Peak Non-Repetitive Surge Current: 500 A Peak Reverse Current: 5 µA Reverse Recovery Time: 3 µs Vintage - New Old Stock - Difficult to find component RoHS Compliant Alternate: Mouser 821-ARS50D
